2018 Vimar FG25C Warehouse Forklift $15,900 or $335 / Mo* SOLD

2018 Vimar FG25C Warehouse Forklift $15,900 or $335 / Mo* SOLD

Sale Price:$15,900.00 Original Price:$16,900.00

Was $16,900

Now $15,900

2018

1265 Hours

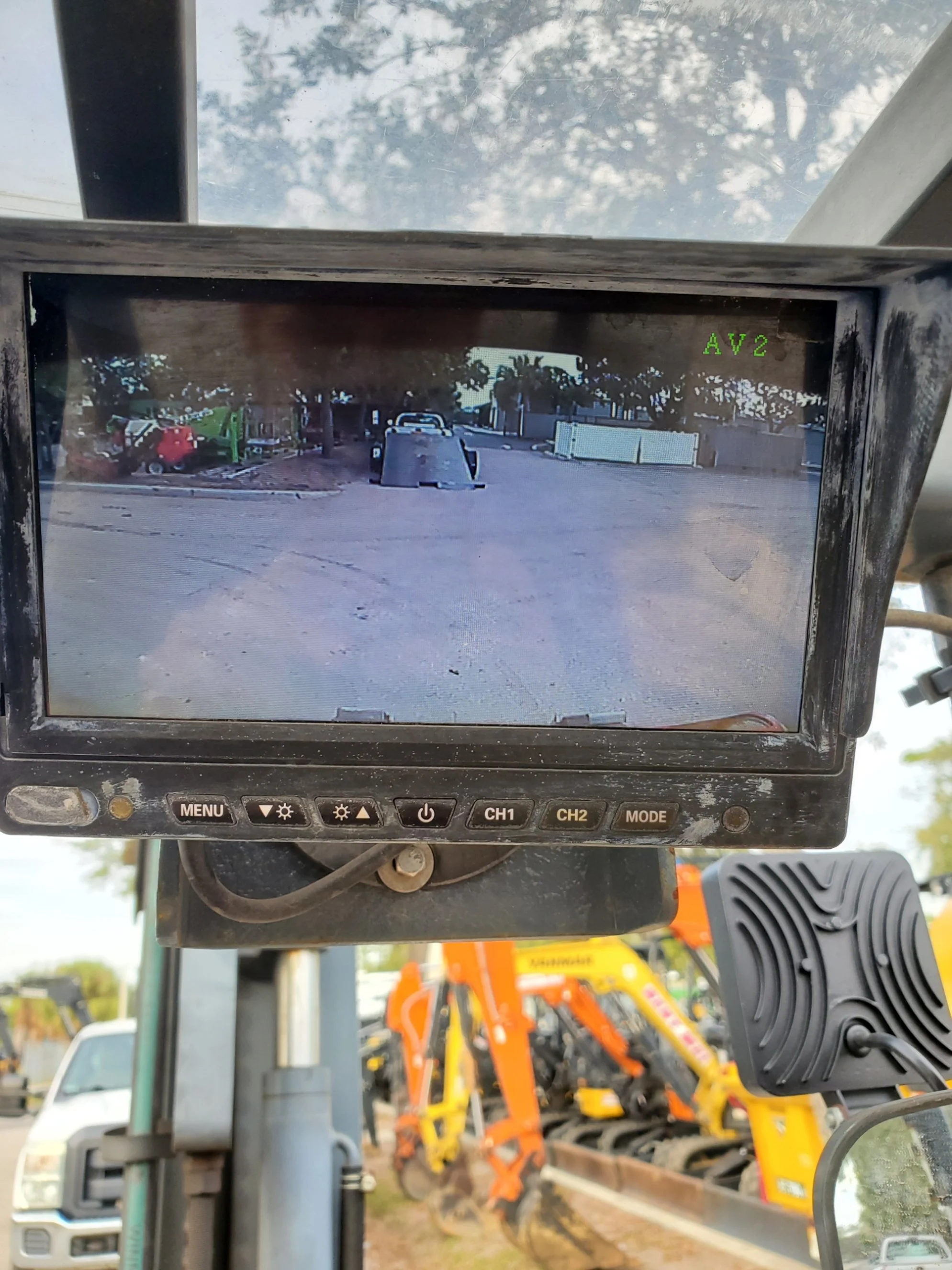

Backup Camera

Propane Powered

Stock # 496

VIMAR is quickly becoming known as being one of the highest value forklift manufacturers in the world. The cushion tire forklift is primarily used indoors in locations such as warehouses and manufacturing facilities. They are suitable for tighter areas because of their smaller turning radius. Since they sit lower to the ground than the pneumatics, a cushion tire forklift can be driven outdoors but only on smooth concrete or asphalt.

The VIMMAR FG25-C LPG Forklift is convertible to a petrol fuel injection system with the purchase of necessary components.  The versatility, affordability, and incredible value the FG25-C proves it to be the best solution to your warehouse or manufacturing facilities' material handling requirements.

SPECIFICATIONS

  • Model:
    FG25-C

  • Capacity:
    5000 LBS

  • Fuel Type:
    LPG

  • Engine Type:
    Mitsubishi EPA4F Mast

  • Overall height fork raised:
    5795 MM / 228.14 IN

  • Maximum fork height:
    4800 MM / 188.98 IN

  • Mast height,fork lowered:
    2148 MM / 84.6 IN

  • Backrest height:
    1035 MM / 40.75 IN

  • Free lift:
    115 MM / 4.53 IN

  • Fork thickness:
    40 MM / 1.57 IN

  • Minimum ground clearance:
    75 MM / 2.95 IN

  • Overall lenth (with forks):
    3490 MM / 137.4 IN

  • Length to fork face:
    2420 MM / 95.28 IN

  • Fork length:
    1070 MM / 42.13 IN

  • Load distance:
    480 MM / 18.89 IN

  • Wheelbase:
    1425 MM / 56.10 IN

  • Rear overhang:
    515 MM / 20.28 IN

  • Drawbar Pin Center Height:
    440 MM / 17.32 IN

  • Overhead guard clearance:
    1100 MM / 43.31 IN

  • Overall height (overhead guard):
    2115 MM / 83.28 IN

  • Overall width:
    1070 MM / 42.13 IN

  • Fork spread (outside):
    245-870 MM / 9.65-34.25 IN

  • Thread (front):
    902 MM / 35.51 IN

  • Thread (rear):
    900 MM / 35.43 IN

  • Fork width:
    122 MM / 4.80 IN

  • Inside turning radius:
    35 MM / 1.38 IN

  • Outside turning radius:
    2060 MM / 81.10 IN

  • Minimum intersecting aisle:
    1915 MM / 75.39 IN

  • Tilt angle (forward-backward):
    6°-6°

Located in Sarasota FL, Local Pickup Only

  • Payment based on 60 months at 7% APR - With Approved Credit
