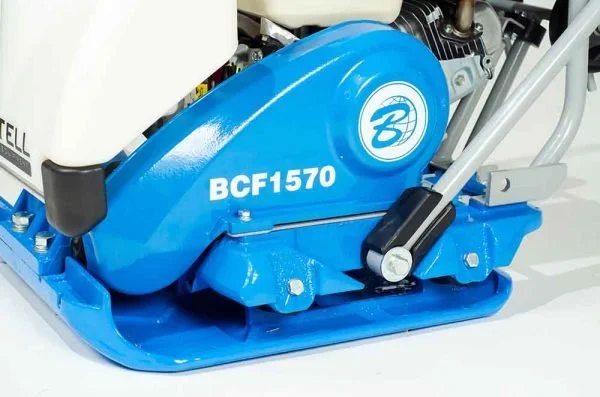

New Bartell BCF1570 Plate Compactor $2595
New Bartell BCF1570 Plate Compactor $2595
Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.
Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage
Retractable wheels flip down for built-in mobility
Integrated lifting bale for safe loading and unloading
Straight-edge plate design leaves no unreachable margins
Sealed housing keeps debris from interfering with the belt
Built-in removable water tank
Optional urethane mat protects pavers and slabs from scratches and breakage
Engine: Honda GX160, 4.8hp (3.6kW)
Compaction Force: 3461 lbf, 15 kN,1570 kgf
Max Travel Speed: 82'/min (25m/min)
Length: 44" (1118mm)
Width: 20" (508mm)
Height: 33" (838mm)
Weight: 217 lbs (98kg)
Plate Size: 20" x 21" (500mm x525mm)
