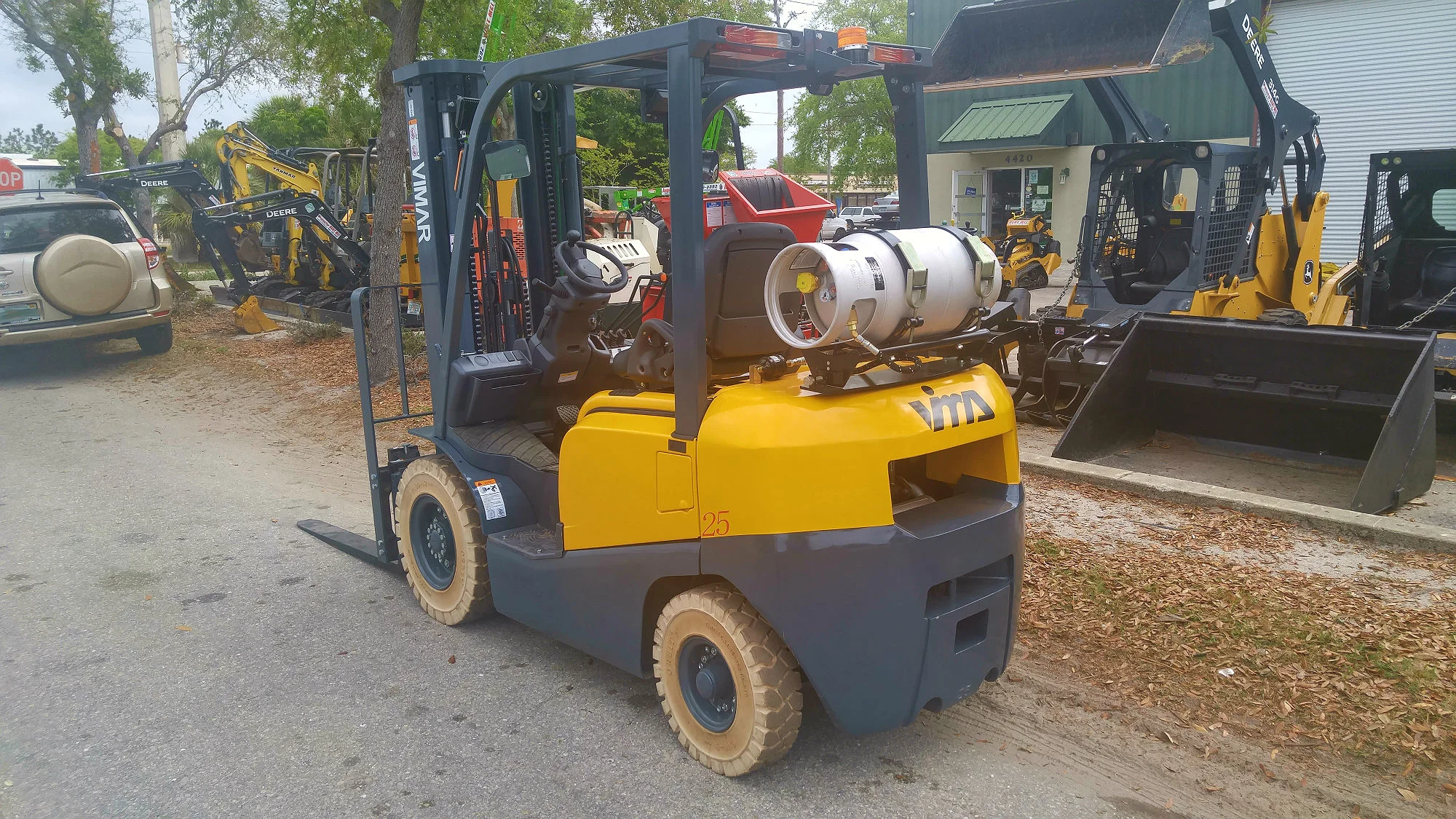

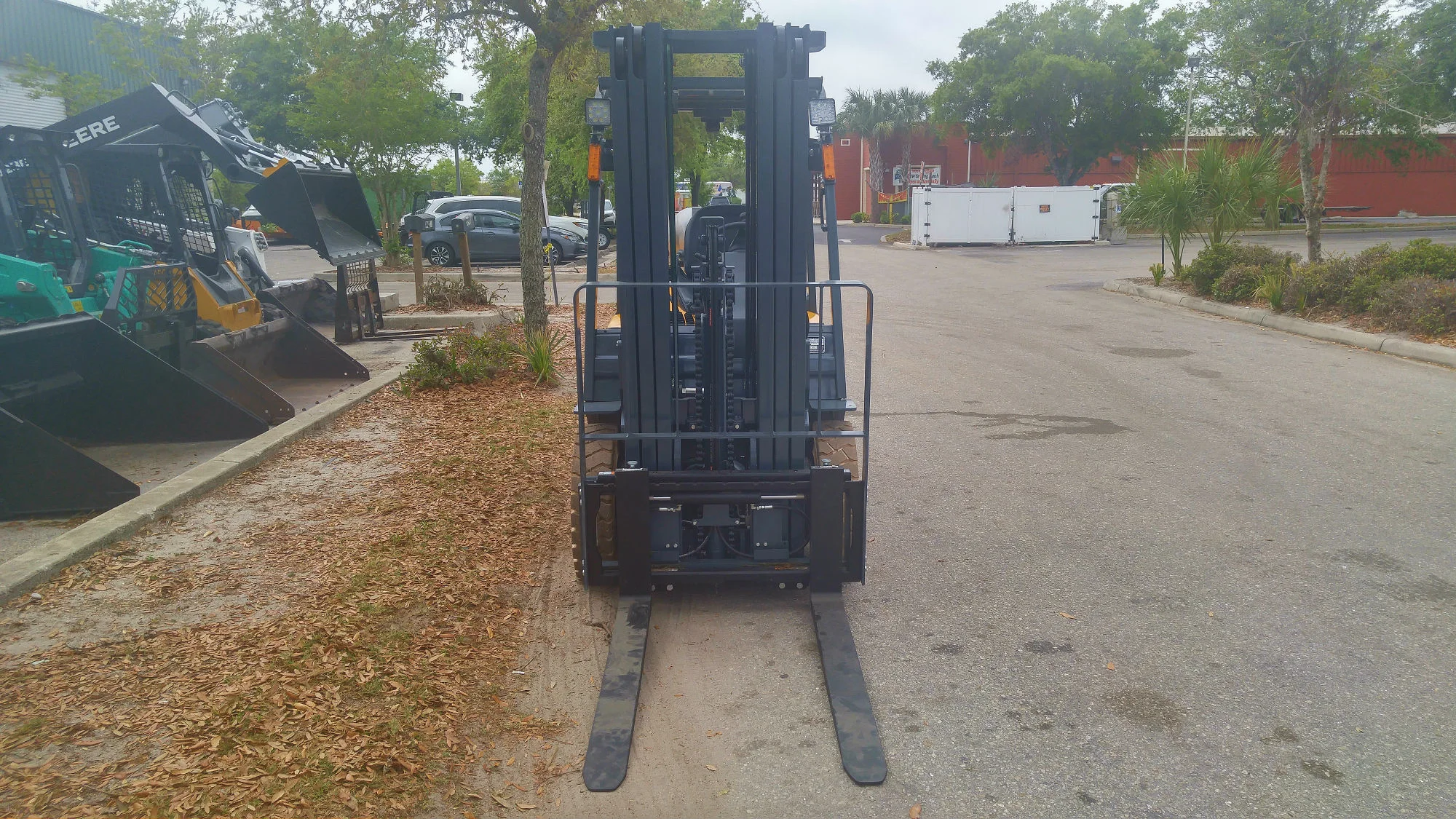

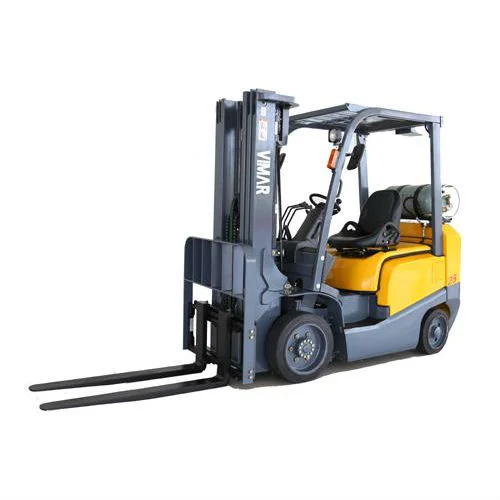

VIMAR FG25-C 5000LB CAPACITY CUSHION TIRE LPG FORKLIFT
VIMAR FG25-C 5000LB CAPACITY CUSHION TIRE LPG FORKLIFT

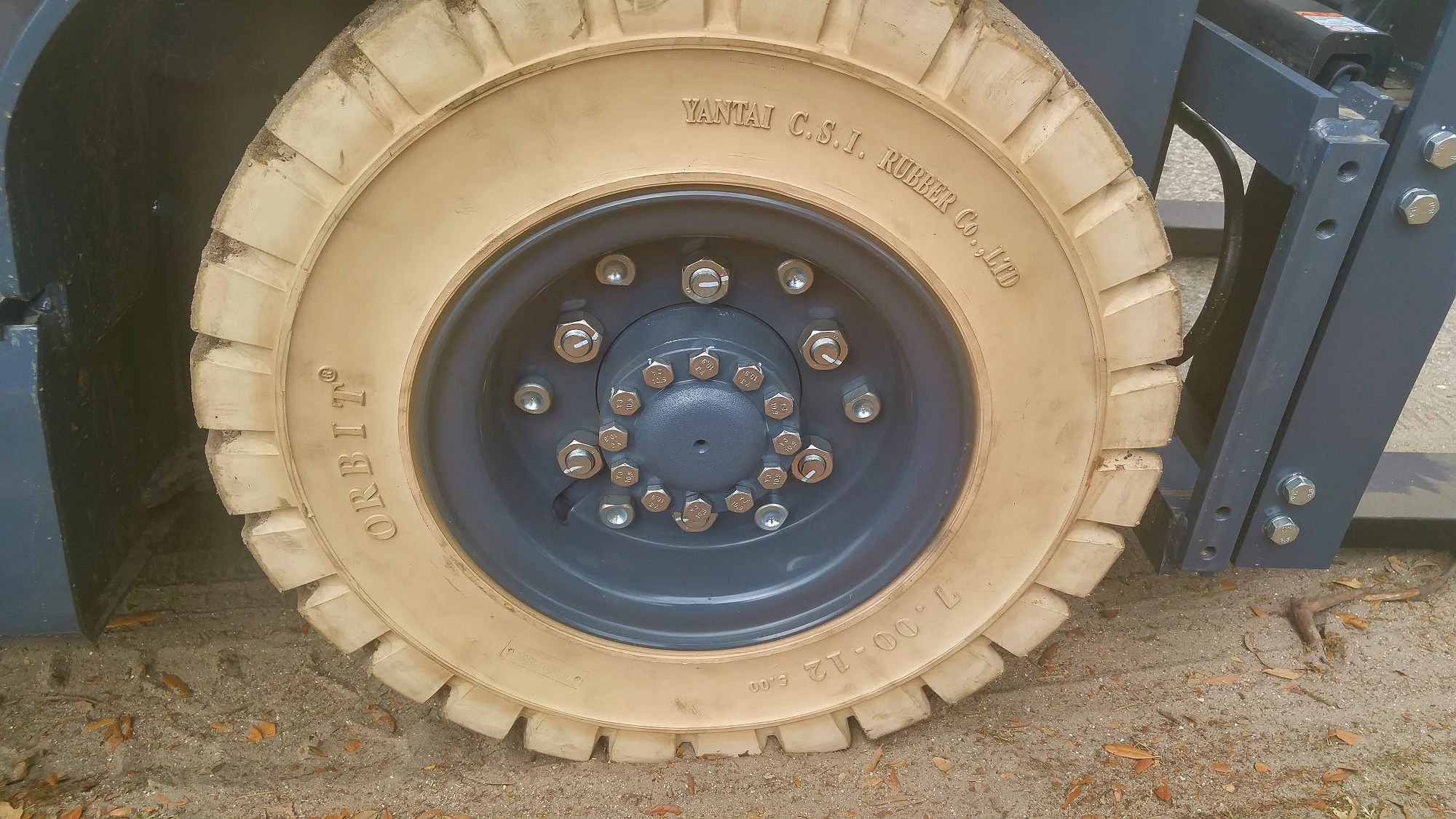

VIMAR is quickly becoming known as being one of the highest value forklift manufacturers in the world. The cushion tire forklift is primarily used indoors in locations such as warehouses and manufacturing facilities. They are suitable for tighter areas because of their smaller turning radius. Since they sit lower to the ground than the pneumatics, a cushion tire forklift can be driven outdoors but only on smooth concrete or asphalt.
The VIMMAR FG25-C LPG Forklift is convertible to a petrol fuel injection system with the purchase of necessary components. The versatility, affordability, and incredible value the FG25-C proves it to be the best solution to your warehouse or manufacturing facilities' material handling requirements.
SPECIFICATIONS
- Model:
FG25-C - Capacity:
5000 LBS - Fuel Type:

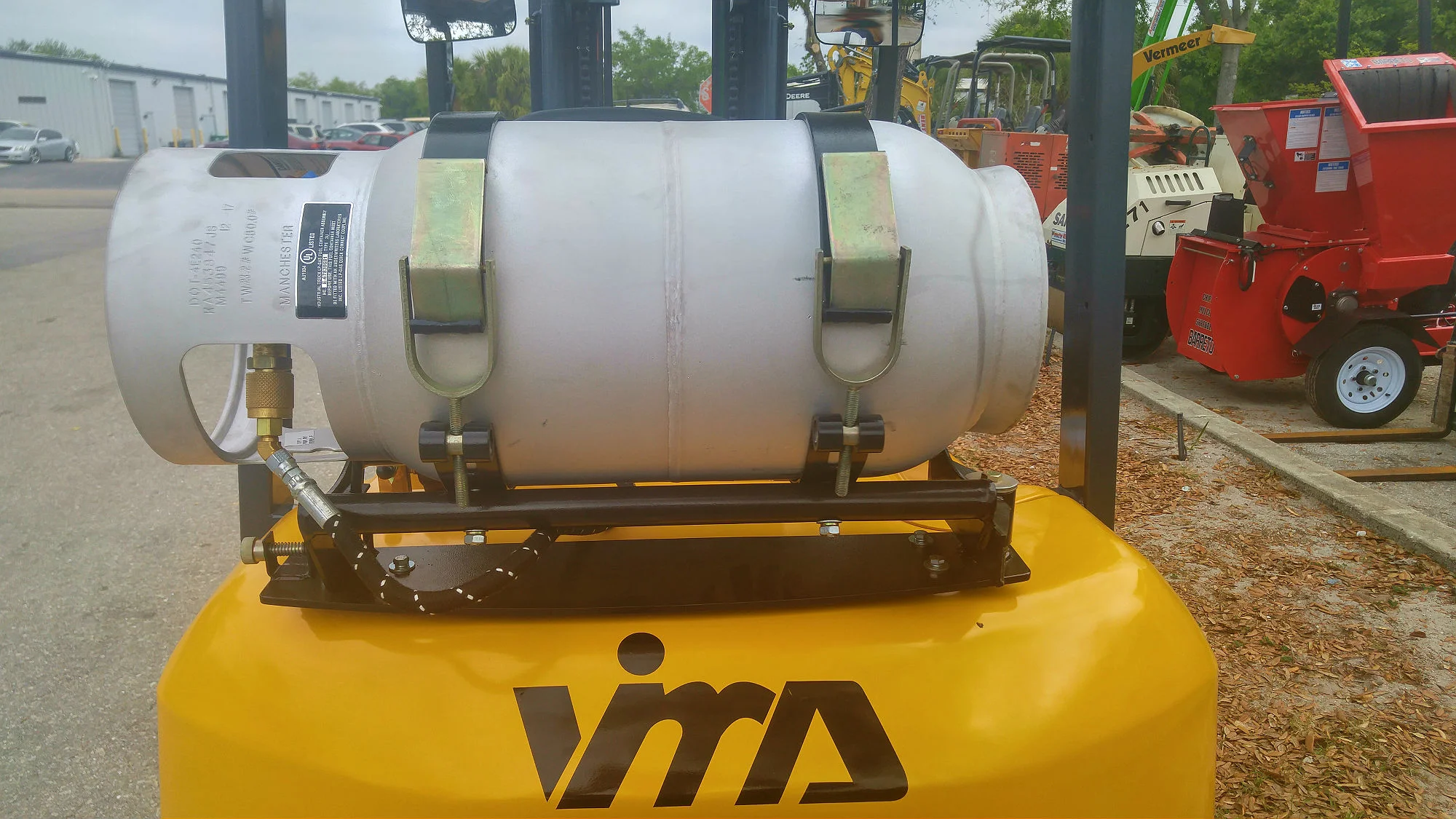

LPG - Engine Type:

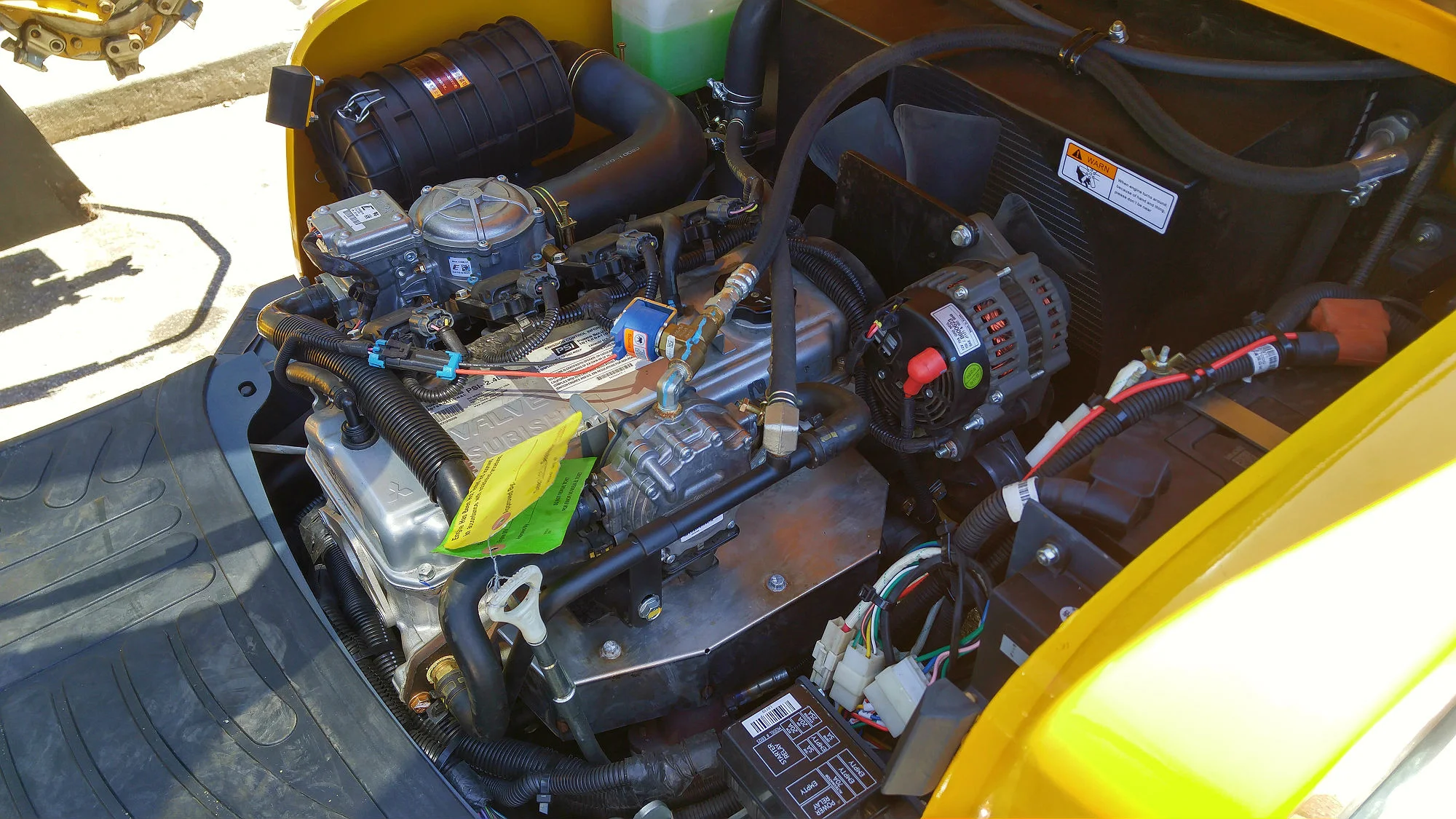

Mitsubishi EPA4F Mast - Overall height fork raised:
5795 MM / 228.14 IN - Maximum fork height:
4800 MM / 188.98 IN - Mast height,fork lowered:
2148 MM / 84.6 IN - Backrest height:
1035 MM / 40.75 IN - Free lift:
115 MM / 4.53 IN - Fork thickness:
40 MM / 1.57 IN - Minimum ground clearance:
75 MM / 2.95 IN - Overall lenth (with forks):
3490 MM / 137.4 IN - Length to fork face:
2420 MM / 95.28 IN - Fork length:
1070 MM / 42.13 IN - Load distance:
480 MM / 18.89 IN - Wheelbase:
1425 MM / 56.10 IN - Rear overhang:
515 MM / 20.28 IN - Drawbar Pin Center Height:
440 MM / 17.32 IN - Overhead guard clearance:
1100 MM / 43.31 IN - Overall height (overhead guard):
2115 MM / 83.28 IN - Overall width:
1070 MM / 42.13 IN - Fork spread (outside):
245-870 MM / 9.65-34.25 IN - Thread (front):
902 MM / 35.51 IN - Thread (rear):
900 MM / 35.43 IN - Fork width:
122 MM / 4.80 IN - Inside turning radius:
35 MM / 1.38 IN - Outside turning radius:
2060 MM / 81.10 IN - Minimum intersecting aisle:
1915 MM / 75.39 IN - Tilt angle (forward-backward):
6°-6°
FEATURES
Substantially reduced vibration by adopting dual floating systems for both the engine and hood .Minimizes the transfer of vibration to the operator, with four-point rubber cushion absorbers between the seat and engine and its transmission. Moreover, use of the same four-point suspension adopted in the hood, realizing a dual effect in reducing vehicle vibrations

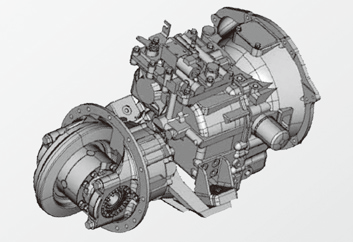

Durable transmissions: New designed and developed durable transmissions are for quiet operation and maximum durability, and are built to insure the highest quality.
Reduced fatigue due to a semi-circular steering wheel . A smaller diameter (300mm outer diameter) steering wheel gives improved vehicle maneuverability. In addition, this compact steering wheel makes it much easier to get on and off the truck.
Meter panel optimally located to the right of the driver’s seat. The meter panel is located on the top right side of the dashboard for easier readability by the operator

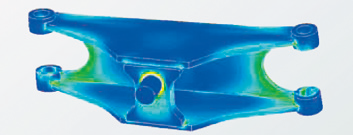

Durable steering axles: Also a durable design, the steer axle has been strengthened and improved for durability in demanding applications.
Cooler running through improved airflow: Optimal positioning of the fan,radiator and muffler has reduced the operation coolant temperature. (gasoline models) the operating temperature of the hydraulic oil has been reduced.
Expansive floor space for easier foot maneuvering. An amazing 45% increase in floor space by placing tilt cylinders under the floor. This gives a smooth foot well in addition to easy entry and exit.
Easier entry and exit from an extra-wide step- 55% wider. The secure step with enlarged foot space enables greater comfort and less fatigue while entering and exiting the vehicle.

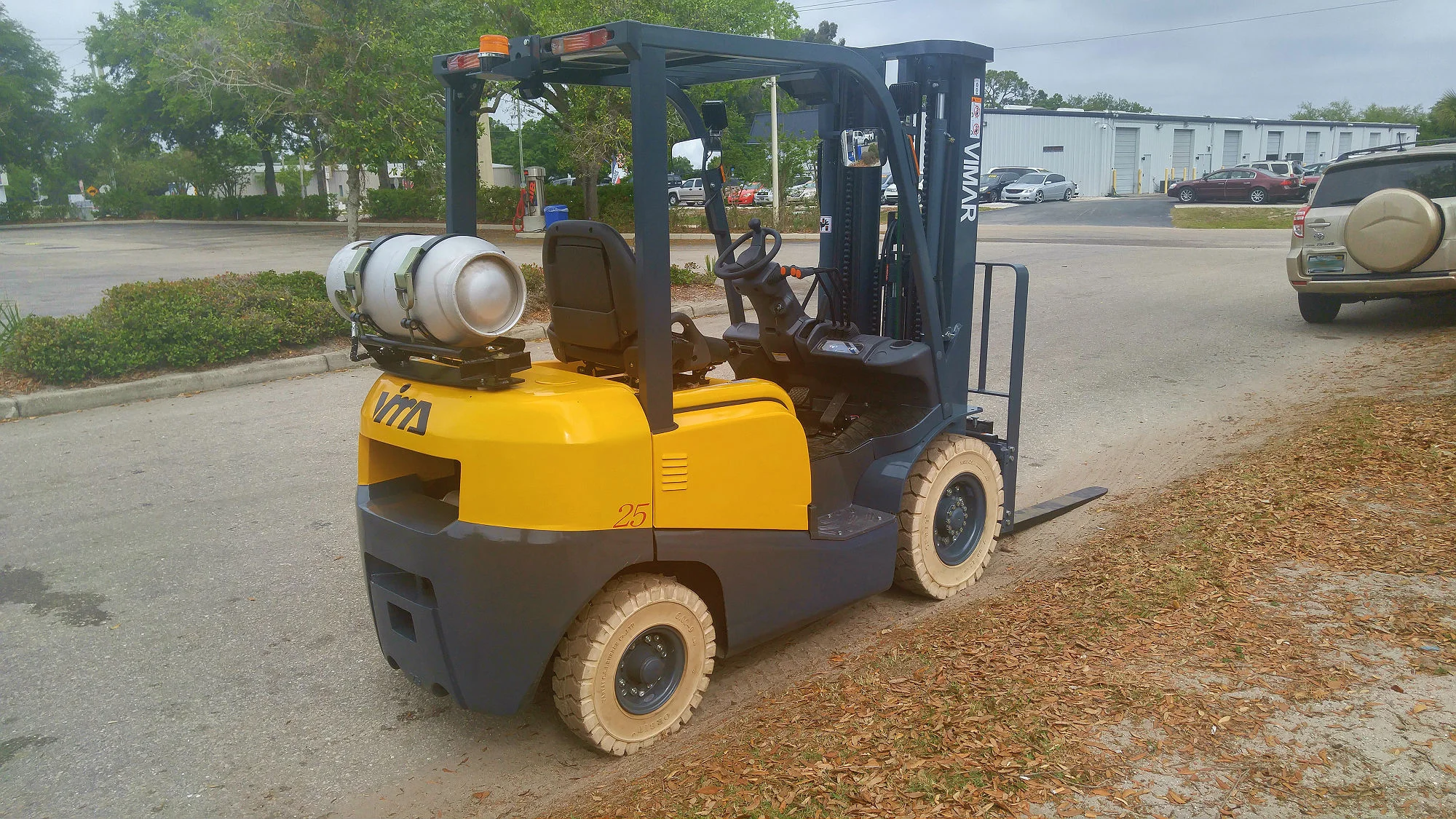

High-mounted INTEGRAL rear combination lights. The brake lights are easily visible at the top of the overhead guard. Recessed for protection, they are vibration resistant.
